Hello,

I found a street loudspeaker, but I don’t know how to connect it or what devices to use to operate it.

Thank you.

6 answers

  1.
    Google@116752551531232518259 Posted messages 6 Registration date   Status Member Last intervention


    Hello

    It's like you find a wheel and ask on which truck, car, motorcycle or tractor to mount it.

    The approach is to determine if you have equipment with an output speaker of the same power and impedance, if you need it relative to an integrated speaker, and possibly if you must and know how to solder.

    First of all. It would be to identify the characteristics if a reference is written

    Starting without minimum knowledge and especially without determining the real need leads to accumulating equipment without being able to use it.

    In any case, according to the photo it is a loudspeaker for PA use to be connected to a power amplifier, if you have one.

    0
  2. brian_w Posted messages 113 Registration date   Status Member Last intervention   2


    Hello,

    Thank you for your reply.

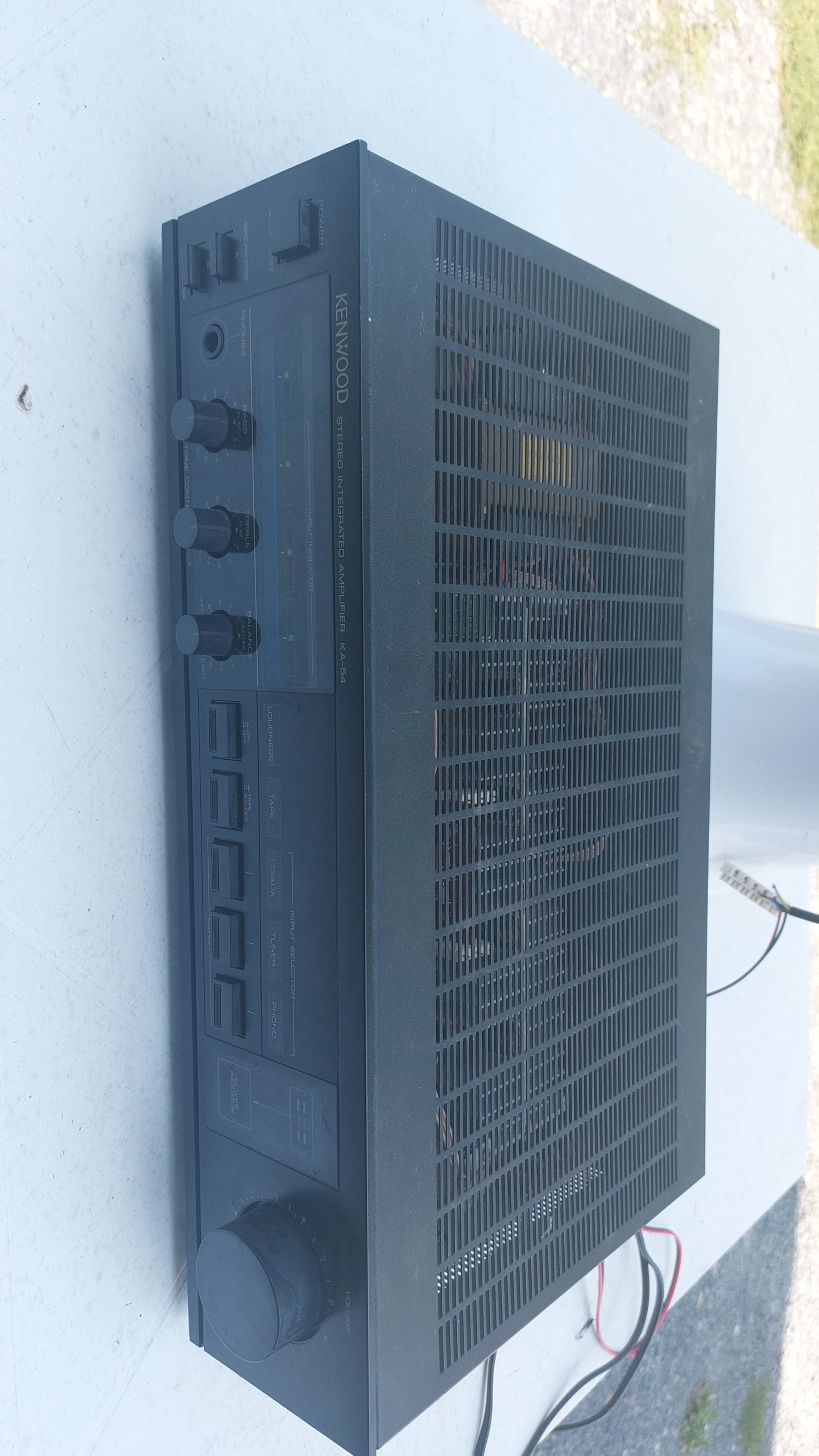

    I understand the problem. Yes, I have a power amplifier (see photo), but I don't know if it is compatible or how to connect it.

    In fact, I have all the equipment; it is a matter of assembly, and I don't know if it will all work together.

    Thank you.

    Best regards.

    0
  3. Google@116752551531232518259 Posted messages 6 Registration date   Status Member Last intervention


    Hello

    That does not address the clarifications to be provided:

    - what use? This type of speaker is intended for outdoor sound systems, not to be paired with a hi-fi preamp-amplifier that is used with two compatible loudspeakers and not with a single speaker.

    That said, some sound could come out of it but a second speaker would be missing.

    - seeing a photo gives no indication of the exact model of the device, even less its specifications

    - the speaker's specifications (maximum power, impedance) are always unknown.

    I don't know either if it can work and cannot offer a lead to a solution in the absence of the technical elements already requested.

    0
  4. glandu Posted messages 25515 Registration date   Status Contributor Last intervention   4 093


    Hello I think this kind of HP works with 100W lines and an appropriate amplifier

    " The donkeys change their minds not the fools"
    please add "resolved" to your message if that's the case

    0
  6. brian_w Posted messages 113 Registration date   Status Member Last intervention   2


    Hello, thank you for your responses. Here are the main features of the amplifier: Kenwood KA-54 Characteristics Type: Stereo integrated amplifier Era: 1985-1986 Power: 2 × 50 W RMS into 8 Ω Total Harmonic Distortion (THD): 0.09% Frequency response: 10 Hz – 100 kHz Damping factor: 20 Speaker impedance: 4 to 16 Ω Phono input sensitivity MM: 2.5 mV Line input sensitivity: 150 mV Signal-to-noise ratio Phono: 73 dB Signal-to-noise ratio line: 100 dB Line output: 150 mV Dimensions (L × H × P): 420 × 109 × 280 mm Weight: 5.4 kg Finish: Silver / black Here are the main features of the speaker: PAH106 Type: Horn / compression driver speaker Use: Outdoor sound / PA 100 V line Woofer diameter: 6.5" / 16 cm Adjustable power: 3.75 / 7.5 / 15 / 30 W Sensitivity: 91 ± 3 dB Frequency response: 300 Hz – 8 kHz Construction: Weather-resistant ABS Mounting: Wall Dimensions: 205 × 285 × 280 mm Weight: 1.86 kg IP66 protection rating according to catalogs.

    Thank you.

    0
  7. baladur13 Posted messages 47422 Registration date   Status Moderator Last intervention   14 418

    Hello,

    There is basically no chance of getting a low-impedance amplifier (domestic sound system) to drive a 100-volt line horn speaker (public address). For a 100V line system you need a specialized amplifier.
