Minecraft crash windows 8

Résolu/Fermé
Myrdox Messages postés 56 Date d'inscription mardi 13 août 2013 Statut Membre Dernière intervention 21 août 2014 - Modifié par Myrdox le 22/10/2013 à 11:41
Destrio5 Messages postés 85985 Date d'inscription dimanche 11 juillet 2010 Statut Modérateur Dernière intervention 17 février 2023 - 20 juil. 2014 à 16:36
Bonjour,

Ayant trouvé aucune solution à mon problème je pose mon problème ici :

Je viens de passer mon ordinateur sur Windows 8, je télécharge Minecraft et je le lance puis il crash, voici le rapport de crash :

---- Minecraft Crash Report ----
// Why did you do that?

Time: 22/10/13 10:46
Description: Initializing game

org.lwjgl.LWJGLException: Pixel format not accelerated
at org.lwjgl.opengl.WindowsPeerInfo.nChoosePixelFormat(Native Method)
at org.lwjgl.opengl.WindowsPeerInfo.choosePixelFormat(WindowsPeerInfo.java:52)
at org.lwjgl.opengl.WindowsDisplay.createWindow(WindowsDisplay.java:244)
at org.lwjgl.opengl.Display.createWindow(Display.java:306)
at org.lwjgl.opengl.Display.create(Display.java:848)
at org.lwjgl.opengl.Display.create(Display.java:757)
at org.lwjgl.opengl.Display.create(Display.java:739)
at ats.O(SourceFile:297)
at ats.d(SourceFile:599)
at net.minecraft.client.main.Main.main(SourceFile:101)


A detailed walkthrough of the error, its code path and all known details is as follows:
---------------------------------------------------------------------------------------

-- Head --
Stacktrace:
at org.lwjgl.opengl.WindowsPeerInfo.nChoosePixelFormat(Native Method)
at org.lwjgl.opengl.WindowsPeerInfo.choosePixelFormat(WindowsPeerInfo.java:52)
at org.lwjgl.opengl.WindowsDisplay.createWindow(WindowsDisplay.java:244)
at org.lwjgl.opengl.Display.createWindow(Display.java:306)
at org.lwjgl.opengl.Display.create(Display.java:848)
at org.lwjgl.opengl.Display.create(Display.java:757)
at org.lwjgl.opengl.Display.create(Display.java:739)
at ats.O(SourceFile:297)

-- Initialization --
Details:
Stacktrace:
at ats.d(SourceFile:599)
at net.minecraft.client.main.Main.main(SourceFile:101)

-- System Details --
Details:
Minecraft Version: 1.6.2
Operating System: Windows 8 (x86) version 6.2
Java Version: 1.7.0_45, Oracle Corporation
Java VM Version: Java HotSpot(TM) Client VM (mixed mode, sharing), Oracle Corporation
Memory: 10224872 bytes (9 MB) / 27570176 bytes (26 MB) up to 518979584 bytes (494 MB)
JVM Flags: 2 total; -XX:HeapDumpPath=MojangTricksIntelDriversForPerformance_javaw.exe_minecraft.exe.heapdump -Xmx512M
AABB Pool Size: 0 (0 bytes; 0 MB) allocated, 0 (0 bytes; 0 MB) used
Suspicious classes: Config]
IntCache: cache: 0, tcache: 0, allocated: 0, tallocated: 0
Launched Version: 1.6.2_Optifine
LWJGL: 2.9.0
OpenGL: ~~ERROR~~ RuntimeException: No OpenGL context found in the current thread.
Is Modded: Very likely; Jar signature invalidated
Type: Client (map_client.txt)
Resource Pack: Default
Current Language: ~~ERROR~~ NullPointerException: null
Profiler Position: N/A (disabled)
Vec3 Pool Size: ~~ERROR~~ NullPointerException: null



Système d'exploitation : Windows 8
Processeur : Intel core 2 duo E8400
Carte Graphique : ATI Radeon HD 4800 série


PS : Minecraft tournais parfaitement sur Windows XP. Et mes drivers sont tous à jour...
A voir également:

23 réponses

  • 1
  • 2
Réponse 1 / 23
Rockst4r2D Messages postés 84 Date d'inscription vendredi 29 mars 2013 Statut Membre Dernière intervention 17 décembre 2016 123
22 oct. 2013 à 11:57
Bonjour, pas besoin de s'affoler, il suffit de mettre a jour vos pilotes de la carte graphique.
2
Réponse 2 / 23
Destrio5 Messages postés 85985 Date d'inscription dimanche 11 juillet 2010 Statut Modérateur Dernière intervention 17 février 2023 10 290
22 oct. 2013 à 15:42
A toi également ;)
2
Baptex
5 juil. 2014 à 21:50
Bonjour Destrio5, juste j'ai un problème quand je séléctionnes les trois fichiers .inf ca me met :

Le dossier que vous avez spécifié ne contient pas de pilote compatible pour votre périphérique. Si le dossier contient un pilote, assurez-vous qu'il est conçu pour fonctionner avec Windows pour ordinateurs 32 bits.

Merci de m'aider :)
0
Destrio5 Messages postés 85985 Date d'inscription dimanche 11 juillet 2010 Statut Modérateur Dernière intervention 17 février 2023 10 290
5 juil. 2014 à 21:55
Bonjour Baptex,

Tu as la même carte graphique, le même système d'exploitation que Myrdox ?
0
Baptex
6 juil. 2014 à 12:24
Bonjour Destrio,

Merci de m'avoir répondu

Voilà pour le système d'exploitation et ma carte graphique :

Carte graphique : ATI Mobility Radeon HD 3430 (Microsoft Corporation-WDDM v1.1)

Système d'exploitation : 32 bits, processeur x64

Merci d'avance :)
0
Destrio5 Messages postés 85985 Date d'inscription dimanche 11 juillet 2010 Statut Modérateur Dernière intervention 17 février 2023 10 290
6 juil. 2014 à 13:33
Essaie le pilote suivant :
http://support.amd.com/fr-fr/download/desktop/legacy?product=legacy2&os=Windows%208%20-%2032
0
Baptex Messages postés 13 Date d'inscription vendredi 4 juillet 2014 Statut Membre Dernière intervention 1 novembre 2014
6 juil. 2014 à 14:20
Ok merci j'essaie.
0
Réponse 3 / 23
Myrdox Messages postés 56 Date d'inscription mardi 13 août 2013 Statut Membre Dernière intervention 21 août 2014 1
Modifié par Myrdox le 22/10/2013 à 12:36
Mais d'après tous les drivers ils sont à jours et j'ai installé cataclyst control center qui n'a rien trouvé...

Edit : Enfaite touslesdrivers.com ne me donne pas carte carte graphique... et AMD driver autodetect me dit que j'ai le dernier driver disponible.
1
Réponse 4 / 23
Destrio5 Messages postés 85985 Date d'inscription dimanche 11 juillet 2010 Statut Modérateur Dernière intervention 17 février 2023 10 290
22 oct. 2013 à 15:06
---> Télécharge et installe 7-Zip :
https://www.commentcamarche.net/telecharger/utilitaires/2197-7-zip/

---> Clique droit sur le fichier "13-1-legacy_vista_win7_win8_32_dd_ccc", choisis "7-Zip" puis "Extraire vers "13-1-legacy_vista_win7_win8_32_dd_ccc\". Tu obtiens un dossier nommé "13-1-legacy_vista_win7_win8_32_dd_ccc".
1

Vous n’avez pas trouvé la réponse que vous recherchez ?

Posez votre question
Réponse 5 / 23
Destrio5 Messages postés 85985 Date d'inscription dimanche 11 juillet 2010 Statut Modérateur Dernière intervention 17 février 2023 10 290
22 oct. 2013 à 12:41
Bonjour,

Pour Windows 8 32 bits :
https://www.touslesdrivers.com/index.php?v_page=23&v_code=36719

Pour Windows 8 64 bits :
https://www.touslesdrivers.com/index.php?v_page=23&v_code=36718
0
Réponse 6 / 23
Myrdox Messages postés 56 Date d'inscription mardi 13 août 2013 Statut Membre Dernière intervention 21 août 2014 1
Modifié par Myrdox le 22/10/2013 à 12:46
Merci je test sa tout de suite :)

Edit : J'ai regardé et c'est ce que j'avais téléchargé hier soir et qui n'avais pas fonctionné... :/
0
Réponse 7 / 23
Destrio5 Messages postés 85985 Date d'inscription dimanche 11 juillet 2010 Statut Modérateur Dernière intervention 17 février 2023 10 290
22 oct. 2013 à 13:17
Si tu as une version 64 bits de Windows, installe la version 64 bits de Java :
https://www.java.com/fr/download/manual.jsp
0
Réponse 8 / 23
Myrdox Messages postés 56 Date d'inscription mardi 13 août 2013 Statut Membre Dernière intervention 21 août 2014 1
Modifié par Myrdox le 22/10/2013 à 13:24
Ben j'ai une version X86 de Windows 8.1 (entreprise) donc 32bits et j'ai java 32bits... :/
0
Réponse 9 / 23
Destrio5 Messages postés 85985 Date d'inscription dimanche 11 juillet 2010 Statut Modérateur Dernière intervention 17 février 2023 10 290
22 oct. 2013 à 14:00
---> Extrais le fichier 13-1-legacy_vista_win7_win8_32_dd_ccc.

---> Ouvre le gestionnaire de périphériques.

---> Clique droit sur ta carte graphique et choisis "Mettre à jour le pilote...".

---> Choisis "Rechercher un pilote sur mon ordinateur".

---> Clique sur "Choisir parmi une liste de pilotes..." puis sur "Disque fourni".

---> Sélectionne le fichier .inf présent dans le dossier "W8_INF" du dossier 13-1-legacy_vista_win7_win8_32_dd_ccc > $_OUTDIR > Packages > Drivers > Display et valide.

---> Clique sur "Suivant".
0
Réponse 10 / 23
Myrdox Messages postés 56 Date d'inscription mardi 13 août 2013 Statut Membre Dernière intervention 21 août 2014 1
22 oct. 2013 à 14:24
Mais d'après AMD driver autodetect j'ai déjà le dernier driver... Sa ne peux pas venir d'autre chose ?
0
Réponse 11 / 23
Destrio5 Messages postés 85985 Date d'inscription dimanche 11 juillet 2010 Statut Modérateur Dernière intervention 17 février 2023 10 290
22 oct. 2013 à 14:33
As-tu essayé la manip' ?
0
Réponse 12 / 23
Myrdox Messages postés 56 Date d'inscription mardi 13 août 2013 Statut Membre Dernière intervention 21 août 2014 1
Modifié par Myrdox le 22/10/2013 à 14:49
Désolé mais je suis bloqué ici, je ne trouve pas la suite... :


---> Sélectionne le fichier .inf présent dans le dossier "W8_INF" du dossier 13-1-legacy_vista_win7_win8_32_dd_ccc > $_OUTDIR > Packages > Drivers > Display et valide.

---> Clique sur "Suivant".
0
Réponse 13 / 23
Destrio5 Messages postés 85985 Date d'inscription dimanche 11 juillet 2010 Statut Modérateur Dernière intervention 17 février 2023 10 290
22 oct. 2013 à 14:41

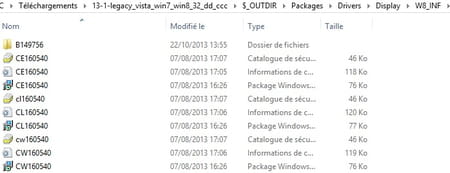

Il y a trois fichiers .inf :
0
Réponse 14 / 23
Myrdox Messages postés 56 Date d'inscription mardi 13 août 2013 Statut Membre Dernière intervention 21 août 2014 1
22 oct. 2013 à 14:51
Et je ne comprend pas l'étape :

---> Extrais le fichier 13-1-legacy_vista_win7_win8_32_dd_ccc

PS : Quand j'essaye d'ouvrir catalyst control center avec le clic droit sur le bureau il me mets une erreur :

"Impossible de démarrer Catalyst Control Center. Il n'y a actuellement aucun paramètre pouvant être configuré avec Catalyst Control Center."

Peut-être que sa peux aider... :/
0
Réponse 15 / 23
Myrdox Messages postés 56 Date d'inscription mardi 13 août 2013 Statut Membre Dernière intervention 21 août 2014 1
22 oct. 2013 à 15:10
Merci, et je choisis lequel des 3 svp ? :/
0
Réponse 16 / 23
Destrio5 Messages postés 85985 Date d'inscription dimanche 11 juillet 2010 Statut Modérateur Dernière intervention 17 février 2023 10 290
22 oct. 2013 à 15:20
Je ne sais pas. Teste et tu vois.
0
Réponse 17 / 23
Myrdox Messages postés 56 Date d'inscription mardi 13 août 2013 Statut Membre Dernière intervention 21 août 2014 1
22 oct. 2013 à 15:38
Merci beaucoup de votre aide maintenant Minecraft fonctionne ! :)

Bonne fin d'après-midi ! :)
0
Réponse 18 / 23
Baptex Messages postés 13 Date d'inscription vendredi 4 juillet 2014 Statut Membre Dernière intervention 1 novembre 2014
5 juil. 2014 à 21:00
Merci énormément j'ai pris une semaine avant de tomber sur ce topic et régler le problème ;)

Merci Destrio
0
Réponse 19 / 23
kaminoikaru Messages postés 4 Date d'inscription vendredi 18 juillet 2014 Statut Membre Dernière intervention 20 juillet 2014
20 juil. 2014 à 13:38
Bonjour auriez-vous le pilote a installer pour
Processeur Pentium(R)Dual-core CPU
Système exploitation 64bits java 64 bits
0
Destrio5 Messages postés 85985 Date d'inscription dimanche 11 juillet 2010 Statut Modérateur Dernière intervention 17 février 2023 10 290
20 juil. 2014 à 13:50
Bonjour kaminoikaru,

https://www.commentcamarche.net/faq/9265-identifier-son-materiel-avec-aida64

Copie-colle le résumé généré par AIDA64 dans ton prochain message.
0
Réponse 20 / 23
kaminoikaru Messages postés 4 Date d'inscription vendredi 18 juillet 2014 Statut Membre Dernière intervention 20 juillet 2014
20 juil. 2014 à 14:10
Bonjour,
--------[ AIDA64 Extreme ]----------------------------------------------------------------------------------------------

Version AIDA64 v4.30.2900/fr Module de test 4.1.611-x64 Site web http://www.aida64.com/Type de rapport Rapport rapide [ TRIAL VERSION ] Ordinateur ICE-PC Générateur Ice Système d'exploitation Microsoft Windows 7 Ultimate 6.1.7601.18409 (Win7 RTM) Date 2014-07-20 Heure 14:04

--------[ Résumé ]------------------------------------------------------------------------------------------------------

Ordinateur: Type de système ACPI x64-based PC (Mobile) Système d'exploitation Microsoft Windows 7 Ultimate Service Pack du système [ TRIAL VERSION ] Internet Explorer 11.0.9600.17207 DirectX DirectX 11.1 Nom du système ICE-PC Nom de l'utilisateur Ice Domaine de connexion [ TRIAL VERSION ] Date / Heure 2014-07-20 / 14:04

Carte mère: Type de processeur Mobile DualCore Intel Pentium T4400, 1200 MHz (11 x 109) Nom de la carte mère Acer Aspire 5738 Chipset de la carte mère Intel Cantiga GM45 Mémoire système [ TRIAL VERSION ] DIMM1: Samsung M471B5673EH1-CF8 2 Go DDR3-1066 DDR3 SDRAM (8-7-7-20 @ 533 MHz) (7-7-7-20 @ 533 MHz) (6-6-6-18 @ 457 MHz) DIMM3: Samsung M471B5673EH1-CF8 [ TRIAL VERSION ] Type de Bios Phoenix (09/24/10)

Moniteur: Carte vidéo ATI Mobility Radeon HD 4500/5100 Series (512 Mo) Carte vidéo ATI Mobility Radeon HD 4500/5100 Series (512 Mo) Accélérateur 3D ATI Mobility Radeon HD 4570 (M92) Moniteur AG Neovo K-A19 [19" LCD] (00934) Moniteur AU Optronics B156XW01 V0 [15.6" LCD]

Multimédia: Carte audio ATI Radeon HDMI @ ATI RV710/730/740 - High Definition Audio Controller Carte audio Realtek ALC888 @ Intel 82801IB ICH9 - High Definition Audio Controller [A-3]

Stockage: Contrôleur IDE Contrôleur Serial ATA standard AHCI 1.0 Disque dur WDC WD3200BEKT-08PVMT1 ATA Device (320 Go, 7200 RPM, SATA-II) Lecteur optique HL-DT-ST DVDRAM GU10N ATA Device (DVD+R9:6x, DVD-R9:6x, DVD+RW:8x/8x, DVD-RW:8x/6x, DVD-RAM:5x, DVD-ROM:8x, CD:24x/24x/24x DVD+RW/DVD-RW/DVD-RAM) État des disques durs SMART OK

Partitions: C: (NTFS) [ TRIAL VERSION ] D: (NTFS) 79998 Mo (9359 Mo libre) Taille totale [ TRIAL VERSION ]

Entrée: Clavier Clavier standard PS/2 Souris Souris HID Souris Synaptics PS/2 Port TouchPad

Réseau: Adresse IP principale [ TRIAL VERSION ] Adresse MAC principale C4-17-FE-22-35-B9 Carte réseau Atheros AR5B93 Wireless Network Adapter (192. [ TRIAL VERSION ]) Carte réseau Broadcom NetLink (TM) Gigabit Ethernet Carte réseau Microsoft Virtual WiFi Miniport Adapter Modem Agere Systems HDA Modem

Périphériques: Imprimante Epson ESC/P-R Contrôleur USB1 Intel 82801IB ICH9 - USB Universal Host Controller [A-3] Contrôleur USB1 Intel 82801IB ICH9 - USB Universal Host Controller [A-3] Contrôleur USB1 Intel 82801IB ICH9 - USB Universal Host Controller [A-3] Contrôleur USB1 Intel 82801IB ICH9 - USB Universal Host Controller [A-3] Contrôleur USB1 Intel 82801IB ICH9 - USB Universal Host Controller [A-3] Contrôleur USB1 Intel 82801IB ICH9 - USB Universal Host Controller [A-3] Contrôleur USB2 Intel 82801IB ICH9 - USB2 Enhanced Host Controller [A-3] Contrôleur USB2 Intel 82801IB ICH9 - USB2 Enhanced Host Controller [A-3] Périphérique USB Kindle Périphérique USB Kindle Périphérique USB Périphérique d'entrée USB Périphérique USB Périphérique USB composite Périphérique USB Périphérique USB composite Périphérique USB Video WebCam Batterie Adaptateur secteur Microsoft Batterie Batterie à méthode de contrôle compatible ACPI Microsoft Batterie Batterie composite Microsoft

DMI: Distributeur du Bios Phoenix Technologies LTD Version du Bios V1.34 Fabricant du système Acer Nom du système Aspire 5738 Version du système 0100 N° de série du système [ TRIAL VERSION ] UUID du système [ TRIAL VERSION ] Fabricant de la carte mère Acer Nom de la carte mère JV50_MV Version de la carte mère Rev N° de série de la carte mère [ TRIAL VERSION ] Fabricant du châssis Acer Version du châssis N/A N° de série du châssis [ TRIAL VERSION ] Identifiant du châssis [ TRIAL VERSION ] Type du châssis Notebook

--------[ Debug - PCI ]-------------------------------------------------------------------------------------------------

B00 D00 F00: Intel GL40/GM45/GM47/GS45/PM45 Chipset - Memory Controller Hub [B-3]

Offset 000: 86 80 40 2A 06 01 90 20 07 00 00 06 00 00 00 00 Offset 010: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 020: 00 00 00 00 00 00 00 00 00 00 00 00 25 10 05 02 Offset 030: 00 00 00 00 E0 00 00 00 00 00 00 00 00 00 00 00 Offset 040: 01 90 D1 FE 00 00 00 00 01 00 D1 FE 00 00 00 00 Offset 050: 00 00 02 00 03 00 00 00 00 00 00 00 00 00 00 00 Offset 060: 01 00 00 E0 00 00 00 00 01 80 D1 FE 00 00 00 00 Offset 070: 00 00 00 00 00 00 00 00 01 04 00 00 00 00 00 00 Offset 080: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 090: 10 11 11 01 00 10 11 00 40 00 4F 00 00 1A 3B 00 Offset 0A0: 20 00 00 14 00 00 00 00 00 00 00 00 00 00 00 00 Offset 0B0: 00 C0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 0C0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 0D0: 00 00 00 00 00 00 00 00 00 00 00 00 60 02 00 00 Offset 0E0: 09 00 0A 11 88 64 00 1C 01 80 00 00 00 00 00 00 Offset 0F0: 00 00 00 00 00 00 00 00 A0 0F 07 00 00 00 00 00

B00 D01 F00: Intel GL40/GM45/GM47/GS45/PM45 Chipset - PCI Express Graphics Root Port [B-3]

Offset 000: 86 80 41 2A 07 01 10 00 07 00 04 06 10 00 01 00 Offset 010: 00 00 00 00 00 00 00 00 00 01 01 00 20 20 00 20 Offset 020: 00 F4 00 F4 01 D0 F1 DF 00 00 00 00 00 00 00 00 Offset 030: 00 00 00 00 88 00 00 00 00 00 00 00 10 01 1A 00 Offset 040: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 050: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 060: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 070: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 02 Offset 080: 01 90 03 C8 00 00 00 00 0D 80 00 00 25 10 05 02 Offset 090: 05 A0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 0A0: 10 00 41 01 00 80 00 00 00 00 00 00 01 2D 01 02 Offset 0B0: 42 00 01 11 C0 25 0C 00 C0 01 48 00 00 00 00 00 Offset 0C0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 0D0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 0E0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 0F0: 00 00 01 03 04 00 00 A0 A0 0F 07 00 13 40 00 00

B00 D1A F00: Intel 82801IB ICH9 - USB Universal Host Controller [A-3]

Offset 000: 86 80 37 29 05 00 90 02 03 00 03 0C 00 00 80 00 Offset 010: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 020: 01 18 00 00 00 00 00 00 00 00 00 00 25 10 05 02 Offset 030: 00 00 00 00 50 00 00 00 00 00 00 00 14 01 00 00 Offset 040: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 050: 13 00 06 03 00 00 00 00 00 00 00 00 00 00 00 00 Offset 060: 10 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 070: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 080: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 090: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 0A0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 0B0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 0C0: 00 2F 00 00 00 00 00 00 00 00 01 00 00 00 00 00 Offset 0D0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 0E0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 0F0: 00 00 00 00 00 00 00 00 86 0F 04 00 00 00 00 00

B00 D1A F01: Intel 82801IB ICH9 - USB Universal Host Controller [A-3]

Offset 000: 86 80 38 29 05 00 90 02 03 00 03 0C 00 00 00 00 Offset 010: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 020: 21 18 00 00 00 00 00 00 00 00 00 00 25 10 05 02 Offset 030: 00 00 00 00 50 00 00 00 00 00 00 00 14 02 00 00 Offset 040: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 050: 13 00 06 03 00 00 00 00 00 00 00 00 00 00 00 00 Offset 060: 10 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 070: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 080: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 090: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 0A0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 0B0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 0C0: 00 2F 00 00 00 00 00 00 00 00 01 00 00 00 00 00 Offset 0D0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 0E0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 0F0: 00 00 00 00 00 00 00 00 86 0F 04 00 00 00 00 00

B00 D1A F07: Intel 82801IB ICH9 - USB2 Enhanced Host Controller [A-3]

Offset 000: 86 80 3C 29 06 01 90 02 03 20 03 0C 00 00 00 00 Offset 010: 00 48 50 F4 00 00 00 00 00 00 00 00 00 00 00 00 Offset 020: 00 00 00 00 00 00 00 00 00 00 00 00 25 10 05 02 Offset 030: 00 00 00 00 50 00 00 00 00 00 00 00 14 03 00 00 Offset 040: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 050: 01 58 C2 C9 00 80 00 00 0A 98 A0 20 00 00 00 00 Offset 060: 20 20 FF 00 00 00 00 00 01 00 00 01 00 20 00 C0 Offset 070: 00 00 DF 03 00 00 00 00 00 00 00 00 00 00 00 00 Offset 080: 00 00 00 00 01 00 00 00 00 00 00 00 00 00 00 00 Offset 090: 00 00 00 00 00 00 00 00 13 00 06 03 00 00 00 00 Offset 0A0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 0B0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 0C0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 0D0: 00 00 00 00 00 AA FF 00 00 00 00 00 00 00 00 00 Offset 0E0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 0F0: 00 00 00 00 88 85 40 00 86 0F 04 00 0A 17 02 20

B00 D1B F00: Intel 82801IB ICH9 - High Definition Audio Controller [A-3]

Offset 000: 86 80 3E 29 06 01 10 00 03 00 03 04 10 00 00 00 Offset 010: 04 00 50 F4 00 00 00 00 00 00 00 00 00 00 00 00 Offset 020: 00 00 00 00 00 00 00 00 00 00 00 00 25 10 05 02 Offset 030: 00 00 00 00 50 00 00 00 00 00 00 00 15 01 00 00 Offset 040: 01 00 00 07 00 00 00 00 00 00 00 00 00 80 00 00 Offset 050: 01 60 42 C8 00 01 00 00 00 00 00 00 00 00 00 00 Offset 060: 05 70 80 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 070: 10 00 91 00 00 00 00 10 00 08 10 00 00 00 00 00 Offset 080: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 090: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 0A0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 0B0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 0C0: 00 04 00 01 00 00 00 00 31 00 A3 02 00 00 00 00 Offset 0D0: 61 00 A3 02 00 00 00 00 00 00 00 00 00 00 00 00 Offset 0E0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 0F0: 00 00 00 00 00 00 00 00 86 0F 04 00 00 00 00 00

B00 D1C F00: Intel 82801IB ICH9 - PCI Express Root Port 1 [A-3]

Offset 000: 86 80 40 29 06 01 10 00 03 00 04 06 10 00 81 00 Offset 010: 00 00 00 00 00 00 00 00 00 02 02 00 F0 00 00 00 Offset 020: 10 F4 10 F4 F1 FF 01 00 00 00 00 00 00 00 00 00 Offset 030: 00 00 00 00 40 00 00 00 00 00 00 00 10 01 04 00 Offset 040: 10 80 41 01 00 80 00 00 00 00 10 00 11 2C 11 01 Offset 050: 42 00 11 30 E0 A0 00 00 C9 03 50 00 00 00 00 00 Offset 060: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 070: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 080: 05 90 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 090: 0D A0 00 00 25 10 05 02 00 00 00 00 00 00 00 00 Offset 0A0: 01 00 02 C8 00 00 00 00 00 00 00 00 00 00 00 00 Offset 0B0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 0C0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 0D0: 00 00 00 00 00 00 00 00 00 00 11 C8 00 00 00 00 Offset 0E0: 00 0F C7 00 06 07 08 00 33 00 00 00 00 00 00 00 Offset 0F0: 00 00 00 00 00 00 00 00 86 0F 04 00 00 00 00 00

B00 D1C F01: Intel 82801IB ICH9 - PCI Express Root Port 2 [A-3]

Offset 000: 86 80 42 29 06 01 10 00 03 00 04 06 10 00 81 00 Offset 010: 00 00 00 00 00 00 00 00 00 03 03 00 F0 00 00 20 Offset 020: 20 F4 20 F4 F1 FF 01 00 00 00 00 00 00 00 00 00 Offset 030: 00 00 00 00 40 00 00 00 00 00 00 00 11 02 04 00 Offset 040: 10 80 41 01 00 80 00 00 00 00 11 00 11 2C 11 02 Offset 050: 42 00 11 30 E0 A0 08 00 C9 03 50 00 00 00 00 00 Offset 060: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 070: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 080: 05 90 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 090: 0D A0 00 00 25 10 05 02 00 00 00 00 00 00 00 00 Offset 0A0: 01 00 02 C8 00 00 00 00 00 00 00 00 00 00 00 00 Offset 0B0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 0C0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 0D0: 00 00 00 00 00 00 00 00 00 00 11 C8 00 00 00 00 Offset 0E0: 00 0F C7 00 06 07 08 00 33 00 00 00 00 00 00 00 Offset 0F0: 00 00 00 00 00 00 00 00 86 0F 04 00 00 00 00 00

B00 D1C F04: Intel 82801IB ICH9 - PCI Express Root Port 5 [A-3]

Offset 000: 86 80 48 29 07 01 10 00 03 00 04 06 10 00 81 00 Offset 010: 00 00 00 00 00 00 00 00 00 04 06 00 30 30 00 20 Offset 020: 00 F2 F0 F3 01 F0 F1 F1 00 00 00 00 00 00 00 00 Offset 030: 00 00 00 00 40 00 00 00 00 00 00 00 10 01 04 00 Offset 040: 10 80 41 01 00 80 00 00 00 00 10 00 11 4C 11 05 Offset 050: 00 00 01 10 E0 A0 20 00 C9 03 00 00 00 00 00 00 Offset 060: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 070: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 080: 05 90 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 090: 0D A0 00 00 25 10 05 02 00 00 00 00 00 00 00 00 Offset 0A0: 01 00 02 C8 00 00 00 00 00 00 00 00 00 00 00 00 Offset 0B0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 0C0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 0D0: 00 00 00 00 00 00 00 00 00 00 11 C8 00 00 00 00 Offset 0E0: 00 0F C7 00 06 07 08 00 31 00 00 00 00 00 00 00 Offset 0F0: 00 00 00 00 00 00 00 00 86 0F 04 00 00 00 00 00

B00 D1D F00: Intel 82801IB ICH9 - USB Universal Host Controller [A-3]

Offset 000: 86 80 34 29 05 00 90 02 03 00 03 0C 00 00 80 00 Offset 010: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 020: 41 18 00 00 00 00 00 00 00 00 00 00 25 10 05 02 Offset 030: 00 00 00 00 50 00 00 00 00 00 00 00 17 01 00 00 Offset 040: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 050: 13 00 06 03 00 00 00 00 00 00 00 00 00 00 00 00 Offset 060: 10 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 070: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 080: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 090: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 0A0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 0B0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 0C0: 00 2F 00 00 00 00 00 00 00 00 01 00 00 00 00 00 Offset 0D0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 0E0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 0F0: 00 00 00 00 00 00 00 00 86 0F 04 00 00 00 00 00

B00 D1D F01: Intel 82801IB ICH9 - USB Universal Host Controller [A-3]

Offset 000: 86 80 35 29 05 00 90 02 03 00 03 0C 00 00 00 00 Offset 010: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 020: 61 18 00 00 00 00 00 00 00 00 00 00 25 10 05 02 Offset 030: 00 00 00 00 50 00 00 00 00 00 00 00 11 02 00 00 Offset 040: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 050: 13 00 06 03 00 00 00 00 00 00 00 00 00 00 00 00 Offset 060: 10 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 070: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 080: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 090: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 0A0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 0B0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 0C0: 00 2F 00 00 00 00 00 00 00 00 01 00 00 00 00 00 Offset 0D0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 0E0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 0F0: 00 00 00 00 00 00 00 00 86 0F 04 00 00 00 00 00

B00 D1D F02: Intel 82801IB ICH9 - USB Universal Host Controller [A-3]

Offset 000: 86 80 36 29 05 00 90 02 03 00 03 0C 00 00 00 00 Offset 010: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 020: 81 18 00 00 00 00 00 00 00 00 00 00 25 10 05 02 Offset 030: 00 00 00 00 50 00 00 00 00 00 00 00 12 03 00 00 Offset 040: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 050: 13 00 06 03 00 00 00 00 00 00 00 00 00 00 00 00 Offset 060: 10 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 070: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 080: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 090: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 0A0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 0B0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 0C0: 00 2F 00 00 00 00 00 00 00 00 01 00 00 00 00 00 Offset 0D0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 0E0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 0F0: 00 00 00 00 00 00 00 00 86 0F 04 00 00 00 00 00

B00 D1D F03: Intel 82801IB ICH9 - USB Universal Host Controller [A-3]

Offset 000: 86 80 39 29 05 00 90 02 03 00 03 0C 00 00 00 00 Offset 010: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 020: A1 18 00 00 00 00 00 00 00 00 00 00 25 10 05 02 Offset 030: 00 00 00 00 50 00 00 00 00 00 00 00 12 04 00 00 Offset 040: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 050: 13 00 06 03 00 00 00 00 00 00 00 00 00 00 00 00 Offset 060: 10 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 070: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 080: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 090: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 0A0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 0B0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 0C0: 00 2F 00 00 00 00 00 00 00 00 01 00 00 00 00 00 Offset 0D0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 0E0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 0F0: 00 00 00 00 00 00 00 00 86 0F 04 00 00 00 00 00

B00 D1D F07: Intel 82801IB ICH9 - USB2 Enhanced Host Controller [A-3]

Offset 000: 86 80 3A 29 06 01 90 02 03 20 03 0C 00 00 00 00 Offset 010: 00 4C 50 F4 00 00 00 00 00 00 00 00 00 00 00 00 Offset 020: 00 00 00 00 00 00 00 00 00 00 00 00 25 10 05 02 Offset 030: 00 00 00 00 50 00 00 00 00 00 00 00 17 01 00 00 Offset 040: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 050: 01 58 C2 C9 00 00 00 00 0A 98 A0 20 00 00 00 00 Offset 060: 20 20 FF 00 00 00 00 00 01 00 00 01 00 00 00 C0 Offset 070: 00 00 DF 3F 00 00 00 00 00 00 00 00 00 00 00 00 Offset 080: 00 00 00 00 01 00 00 00 00 00 00 00 00 00 00 00 Offset 090: 00 00 00 00 00 00 00 00 13 00 06 03 00 00 00 00 Offset 0A0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 0B0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 0C0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 0D0: 00 00 00 00 00 AA FF 00 00 00 00 00 00 00 00 00 Offset 0E0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 0F0: 00 00 00 00 88 85 40 00 86 0F 04 00 0A 17 02 20

B00 D1E F00: Intel 82801IBM I/O Controller Hub 9 (ICH9M) [A-3]

Offset 000: 86 80 48 24 07 01 10 00 93 01 04 06 00 00 01 00 Offset 010: 00 00 00 00 00 00 00 00 00 0D 0D 00 F0 00 80 22 Offset 020: F0 FF 00 00 F1 FF 01 00 00 00 00 00 00 00 00 00 Offset 030: 00 00 00 00 50 00 00 00 00 00 00 00 FF 00 04 00 Offset 040: 00 00 00 00 00 00 00 00 00 00 00 00 00 12 00 00 Offset 050: 0D 00 00 00 25 10 05 02 00 00 00 00 00 00 00 00 Offset 060: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 070: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 080: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 090: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 0A0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 0B0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 0C0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 0D0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 0E0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 0F0: 00 00 00 00 00 00 00 00 86 0F 04 00 00 00 00 00

B00 D1F F00: Intel 82801IM ICH9M - LPC Bridge [A-3]

Offset 000: 86 80 19 29 07 00 10 02 03 00 01 06 00 00 80 00 Offset 010: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 020: 00 00 00 00 00 00 00 00 00 00 00 00 25 10 05 02 Offset 030: 00 00 00 00 E0 00 00 00 00 00 00 00 00 00 00 00 Offset 040: 01 04 00 00 80 00 00 00 81 11 00 00 10 00 00 00 Offset 050: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 060: 80 80 80 80 D0 00 00 00 80 80 80 80 F8 00 00 00 Offset 070: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 080: 10 00 0F 3F 69 00 04 00 00 00 00 00 00 00 00 00 Offset 090: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 0A0: 24 06 00 00 01 00 80 00 01 1C 0A 00 00 03 00 40 Offset 0B0: 00 00 F0 00 00 00 00 00 04 80 02 00 00 00 00 00 Offset 0C0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 0D0: 2E 11 00 00 67 45 00 00 00 FF 00 00 00 00 00 00 Offset 0E0: 09 00 0C 10 20 02 24 03 64 00 00 00 00 00 00 00 Offset 0F0: 01 C0 D1 FE 00 00 00 00 86 0F 04 00 00 00 00 00

B00 D1F F02: Intel 82801IB ICH9 - 4-port SATA AHCI Controller [A-3]

Offset 000: 86 80 29 29 07 00 B0 02 03 01 06 01 00 00 00 00 Offset 010: F1 18 00 00 E5 18 00 00 E9 18 00 00 E1 18 00 00 Offset 020: C1 18 00 00 00 40 50 F4 00 00 00 00 25 10 05 02 Offset 030: 00 00 00 00 80 00 00 00 00 00 00 00 13 02 00 00 Offset 040: 00 80 77 E3 F0 00 00 00 00 00 00 00 00 00 00 00 Offset 050: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 060: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 070: 01 A8 03 40 08 00 00 00 00 00 00 00 00 00 00 00 Offset 080: 05 70 08 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 090: 60 0C 13 83 93 01 00 0C 00 00 00 00 00 00 00 00 Offset 0A0: 74 00 00 00 3F 00 00 00 12 B0 10 00 48 00 00 00 Offset 0B0: 13 00 06 03 00 00 00 00 00 00 00 00 00 00 00 00 Offset 0C0: 00 00 00 00 05 00 00 00 00 00 00 00 00 00 00 00 Offset 0D0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 0E0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 0F0: 00 00 00 00 00 00 00 00 86 0F 04 00 00 00 00 00

B00 D1F F03: Intel 82801IB ICH9 - SMBus Controller [A-3]

Offset 000: 86 80 30 29 03 01 80 02 03 00 05 0C 00 00 00 00 Offset 010: 04 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 020: 01 1C 00 00 00 00 00 00 00 00 00 00 25 10 05 02 Offset 030: 00 00 00 00 00 00 00 00 00 00 00 00 0A 03 00 00 Offset 040: 01 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 050: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 060: 02 04 04 00 F0 00 08 08 00 00 00 00 00 00 00 00 Offset 070: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 080: 04 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 090: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 0A0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 0B0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 0C0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 0D0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 0E0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 0F0: 00 00 00 00 00 00 00 00 86 0F 04 00 00 00 00 00

B01 D00 F00: ATI Mobility Radeon HD 4570 (Acer) Video Adapter

Offset 000: 02 10 53 95 07 05 10 00 00 00 00 03 10 00 80 00 Offset 010: 08 00 00 D0 01 20 00 00 00 00 00 F4 00 00 00 00 Offset 020: 00 00 00 00 00 00 00 00 00 00 00 00 25 10 05 02 Offset 030: 00 00 00 00 50 00 00 00 00 00 00 00 00 01 00 00 Offset 040: 00 00 00 00 00 00 00 00 00 00 00 00 25 10 05 02 Offset 050: 01 58 03 06 00 00 00 00 10 A0 12 00 A0 8F 2C 01 Offset 060: 10 09 01 00 01 0D 00 00 42 00 01 11 00 00 00 00 Offset 070: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 080: 00 00 00 00 00 00 00 00 01 00 00 00 00 00 00 00 Offset 090: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 0A0: 05 00 81 00 0C 30 E0 FE 00 00 00 00 B0 49 00 00 Offset 0B0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 0C0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 0D0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 0E0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 0F0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00

B01 D00 F01: ATI RV710/730/740 - High Definition Audio Controller

Offset 000: 02 10 38 AA 06 01 10 00 00 00 03 04 10 00 80 00 Offset 010: 00 00 01 F4 00 00 00 00 00 00 00 00 00 00 00 00 Offset 020: 00 00 00 00 00 00 00 00 00 00 00 00 25 10 05 02 Offset 030: 00 00 00 00 50 00 00 00 00 00 00 00 11 02 00 00 Offset 040: 00 00 00 00 00 00 00 00 00 00 00 00 25 10 05 02 Offset 050: 01 58 03 06 00 00 00 00 10 A0 12 00 A0 8F 2C 01 Offset 060: 10 09 01 00 01 0D 00 00 43 00 01 11 00 00 00 00 Offset 070: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 080: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 090: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 0A0: 05 00 80 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 0B0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 0C0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 0D0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 0E0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 0F0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00

B02 D00 F00: Broadcom NetLink BCM5784M PCI-E Gigabit Ethernet Controller

Offset 000: E4 14 98 16 06 05 10 00 10 00 00 02 10 00 00 00 Offset 010: 04 00 10 F4 00 00 00 00 00 00 00 00 00 00 00 00 Offset 020: 00 00 00 00 00 00 00 00 00 00 00 00 25 10 07 02 Offset 030: 00 00 00 00 48 00 00 00 00 00 00 00 00 01 00 00 Offset 040: 03 60 1C 00 37 68 91 5F 01 40 03 C0 08 21 00 0A Offset 050: 05 CC 81 00 0C 30 E0 FE 00 00 00 00 A0 49 00 00 Offset 060: 09 50 6C 00 80 EA 27 F1 98 02 00 F1 00 00 1B 76 Offset 070: 92 10 00 00 00 00 00 00 2C 00 00 00 F0 0D 00 00 Offset 080: 25 10 07 02 00 00 00 00 34 00 13 04 82 40 08 00 Offset 090: 09 02 00 01 00 00 00 01 00 00 00 00 C8 00 00 00 Offset 0A0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 0B0: 00 00 00 00 00 00 00 01 00 00 00 00 00 41 78 05 Offset 0C0: 00 00 00 00 E4 14 98 16 0E 00 00 00 10 00 02 00 Offset 0D0: A1 8F 04 05 00 50 10 00 11 4C 07 00 42 01 11 10 Offset 0E0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 0F0: 1F 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00

B03 D00 F00: Atheros AR5009 802.11a/g/n Wireless Network Adapter

Offset 000: 8C 16 2A 00 46 01 10 00 01 00 80 02 10 00 00 00 Offset 010: 04 00 20 F4 00 00 00 00 00 00 00 00 00 00 00 00 Offset 020: 00 00 00 00 00 00 00 00 00 00 00 00 5B 10 1F E0 Offset 030: 00 00 00 00 40 00 00 00 00 00 00 00 11 01 00 00 Offset 040: 01 50 C2 5B 00 00 00 00 00 00 00 00 00 00 00 00 Offset 050: 05 60 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 060: 10 90 11 00 C0 0C 04 05 10 20 0B 00 11 38 03 00 Offset 070: 4A 00 11 10 00 00 00 00 C0 03 00 00 00 00 00 00 Offset 080: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 090: 11 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 0A0: 04 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 0B0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 0C0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 0D0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 0E0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 0F0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00

PCI-8086-2A40: Intel i45M MCHBAR

Offset C00: 52 40 64 00 01 01 01 01 00 80 00 00 00 00 00 00 Offset C10: 00 00 00 00 02 00 90 30 00 00 00 00 00 00 00 00 Offset C20: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset C30: 00 00 00 00 00 80 00 00 94 11 94 11 00 00 00 00 Offset C40: 00 00 00 00 00 00 00 00 00 00 00 3F 00 00 00 00 Offset C50: 01 01 01 01 00 00 00 00 00 00 00 00 00 00 00 00 Offset C60: 00 00 00 80 80 40 00 00 00 00 00 00 00 00 00 00 Offset C70: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset C80: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset C90: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset CA0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset CB0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset CC0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset CD0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset CE0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset CF0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00

PCI-8086-2A40: Intel i45M MCHBAR

Offset 1000: 01 00 01 00 00 00 FF 00 00 00 00 00 00 00 00 00 Offset 1010: 00 00 00 00 00 00 00 00 01 00 00 00 00 81 00 00 Offset 1020: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 1030: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 1040: 00 00 01 00 00 00 FF 00 00 00 00 00 00 00 00 00 Offset 1050: 00 00 00 00 00 00 00 00 00 00 00 00 00 80 00 00 Offset 1060: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 1070: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 1080: 06 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 1090: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 10A0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 10B0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 10C0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 10D0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 10E0: 01 01 01 01 00 00 00 00 00 00 00 00 00 00 00 00 Offset 10F0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00

PCI-8086-2A40: Intel i45M MCHBAR

Offset 1100: 00 03 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 1110: AC 17 CD 17 8A 17 9B 17 78 17 89 17 56 17 67 17 Offset 1120: 13 12 11 10 17 16 15 14 1B 1A 19 18 1F 1E 1D 1C Offset 1130: 03 02 01 00 07 06 05 04 0B 0A 09 08 0F 0E 0D 0C Offset 1140: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 1150: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 1160: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 1170: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 1180: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 1190: 07 40 00 00 00 00 00 00 00 00 00 00 00 00 00 80 Offset 11A0: 3F 9F B2 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 11B0: 00 00 00 00 00 00 00 00 3C 33 00 40 00 00 00 00 Offset 11C0: 00 00 03 03 03 0A 03 0A 20 00 00 00 17 00 00 00 Offset 11D0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 11E0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 11F0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00

PCI-8086-2A40: Intel i45M MCHBAR

Offset 1200: 20 00 40 00 40 00 40 00 33 00 09 00 03 00 00 00 Offset 1210: 61 8C D1 3C 84 84 E0 11 53 22 1E 22 83 62 86 31 Offset 1220: 28 38 8C 50 44 8A 02 63 04 68 6A 06 02 00 00 00 Offset 1230: 08 02 00 43 00 18 0C 91 00 10 00 0C 00 00 00 00

PCI-8086-2A40: Intel i45M MCHBAR

Offset 1300: 20 00 40 00 40 00 40 00 33 00 09 00 03 00 00 00 Offset 1310: 61 8C D1 3C 84 84 E0 11 53 22 1E 22 83 62 86 31 Offset 1320: 28 38 8C 50 44 8A 02 63 04 68 6A 06 02 00 00 00 Offset 1330: 08 02 00 43 00 18 0C 91 00 10 00 0C 00 00 00 00

PCI-8086-2A40: Intel i45M MCHBAR

Offset 1400: 00 33 11 00 00 00 00 00 FF FF E9 F2 80 08 01 70 Offset 1410: D4 22 00 40 08 98 07 23 00 00 00 00 00 00 00 00 Offset 1420: 22 22 22 22 00 00 00 00 01 58 55 00 0A 03 33 05 Offset 1430: 00 03 00 00 43 02 00 80 00 00 00 00 00 00 00 00

--------[ Debug - Video BIOS ]------------------------------------------------------------------------------------------

C000:0000 U.|...........................IBM............... 761295520...... C000:0040 ................06/08/09,14:23:52................c..4c......%... C000:0080 PA.S.*..S............M92.PCI_EXPRESS.DDR3...Acer_JV50_MV_M92M2_X C000:00C0 T_DDR3 M92 DDR3 64bit 680e/800m ..... .. C000:0100 .(C) 1988-2005, ATI Technologies Inc. .ATOMBIOSBK-ATI VER011.022 C000:0140 .005.000.033359.BR33359D.bin.482721 .108138 . .Acer_JV5 C000:0180 0_MV_M92M2_XT_DDR3\config.h...$...ATOM....P.......... %.......X. C000:01C0 ....PCIR..S.........|.......ATI ATOMBIOS........................ C000:0200 .........V....e..LP. .^..fPfQfRfSfUfVfW..........8.......f...... C000:0240 f.(.....2......B(.A(.=(........'..'..(.......DP. u.........g.Og C000:0280 .......LP.....w..DX.......f.......fP. .....fXt.. f....'....f_f^f C000:02C0 ]f[fZfYfX.............F.f3..F...F..R......FZ..........f......v.f C000:0300 .\.f.L.;.u...f.^.f.N............>...u.............f....e.....@.. C000:0340 ...B.............|.Mo..~.....'s........Hi............Ji.Zi.li... C000:0380 PMID..bN......................f........................fPfR.1f.. C000:03C0 .f....fZfX.fPfR.1f...f....fZfX........u..:&..u..G.....Ou..DI....

------------------------------------------------------------------------------------------------------------------------

The names of actual companies and products mentioned herein may be the trademarks of their respective owners.

Voilà et merci de répondre aussi rapidement
0
Destrio5 Messages postés 85985 Date d'inscription dimanche 11 juillet 2010 Statut Modérateur Dernière intervention 17 février 2023 10 290
20 juil. 2014 à 14:12
Essaie le pilote suivant :
http://global-download.acer.com/GDFiles/Driver/VGA/VGA_ATI_8.692.1.0_W7x86W7x64_A.zip?acerid=634230463464740829&Step1=NOTEBOOK&Step2=ASPIRE&Step3=ASPIRE%205738&OS=711&LC=fr&BC=ACER&SC=EMEA_13
0
